You begin CNC machining by planning your project. You pick the best materials for your job. First, you make a digital design with CAD software. Next, you use CAM software to write instructions for the machine. Then, you set up the CNC machine with tools and materials. The machine follows your instructions to shape the part. At the end, you check the finished piece. You add any needed finishing touches.
Plan your project and pick materials
Make a CAD design
Write instructions with CAM software
Set up the CNC machine
Start the machining operation
Check and finish the final part
CNC machining begins when you plan your project and pick the best materials.
You use CAD software to make a digital design. Then, you use CAM software to make instructions for the CNC machine.
Set up the CNC machine with care so it cuts and shapes your part correctly.
Check the finished piece to see if it meets quality rules. Make changes if you need to.
CNC machining is very precise and works fast. It is great for making hard parts in many industries.
CNC machining uses computer-controlled tools to shape materials. You start with a digital design made in CAD software. The CNC machine reads instructions from a computer program. It cuts and forms parts with great accuracy. Many industries use CNC machining, like automotive, aerospace, and robotics. CNC stands for Computer Numerical Control machining. This technology mixes computer programming with making things. Machines can work by themselves because of this. You can make parts that fit together very well, sometimes as close as ±0.01 mm. This is important when parts must fit perfectly. CNC machining has made manufacturing faster and more consistent. You can make complex shapes and repeat the process many times. The machine works quicker and with fewer mistakes than doing it by hand. This saves time and reduces errors.
Tip: CNC machining lets you make prototypes or production parts without buying costly tooling. This makes it easy to test ideas and grow your project fast.
Here is a quick comparison between CNC machining and manual machining:
Feature | CNC Machining | Manual Machining |
|---|---|---|
Precision | Maintains tight tolerances (0.005 mm to 0.01 mm) | Depends on human skill and steadiness |
Production Speed | Executes cutting paths continuously without pauses | Slower due to manual recalculations |
Consistency | Produces identical parts with stable quality | Varies due to operator fatigue |
Human Error Reduction | Reduces mistakes from manual measurement | Prone to errors from manual adjustments |
Complex Part Capability | Can create intricate shapes and contours | Limited to simpler designs |
Material Utilization | Efficient cutting paths minimize waste | More material waste due to manual processes |
Labor Intensity | Less physical effort required | High physical demand for constant control |
Safety | Enclosed designs enhance operator safety | Higher risk due to direct exposure to tools |
A CNC machine needs several main parts to work well. The controller is like the brain and sends commands. Drive motors move the tool or material along the X, Y, and Z axes. The spindle spins the cutting tool to shape the material. Tool holders keep tools in place, and some machines have automatic tool changers. You hold the workpiece steady in a vise or fixture. Software is important too. CAD makes the design, and CAM turns it into instructions for the CNC machine.
Controller: Sends instructions and manages operations.
Drive motors: Move tools and materials precisely.
Spindle: Rotates the cutting tool for shaping.
Tool holder: Secures tools and enables quick changes.
Workpiece & fixturing: Holds the material firmly.
Software: CAD and CAM programs guide the process.
Some advanced CNC machines have extra features. These include servo motors, ball screws, and linear guides. These help you get better accuracy and more automation. Tool magazines and automatic measurement systems let you change tools and check parts without stopping. Chip conveyors keep the area clean. Pallet changers help you swap materials fast. These parts make CNC machining efficient and dependable for today’s factories.
You start by making a digital model of your part. This uses Computer-Aided Design software. CAD has changed how people design and check parts. You can build a full digital model. This makes it easier to go from design to making the part. You can find problems before you make anything real.
You draw exact 2D or 3D pictures to see the final part.
You can change your design and see if things fit.
CAD and CAM work together for speed and accuracy.
You save time and money by fixing mistakes early.
Some popular CAD programs are:
Fusion 360: Good for 3D modeling and CNC programming.
AutoCAD: Great for detailed 2D and 3D drawings.
SolidWorks: Used for complex mechanical parts.
Rhino: Handles tricky shapes and models.
Inventor: Advanced 3D modeling for machines.
You use CAD as your main design file during production. This keeps your design organized for the next step.
After your CAD design is done, you use CAM programming. CAM stands for Computer-Aided Manufacturing. CAM software takes your digital model and makes a plan for the CNC machine. It creates toolpaths, which are the paths the cutting tool will follow. You pick tools, set speeds, and decide how the machine will cut.
CAM software lets you run tests called simulations. You can check for problems, like tool crashes or missed spots, before you start. This helps you avoid mistakes and wasting material.
The CAM program then makes G-code. G-code is the language that tells the CNC machine what to do. It controls movement, speed, and actions of the machine. G-code helps your part come out right every time.
Tip: Always check your G-code for mistakes before you run the CNC machine. This can stop expensive errors.
Now you get the CNC machine ready to use. This step is very important for making sure your part is correct. You need to:
Pick the right cutting tool for your job.
Put the tool tightly in the tool holder.
Hold the workpiece in place with clamps or a vise.
Make sure the workpiece lines up with the machine’s axes.
Set the zero points for X, Y, and Z axes (called the Work Coordinate System).
Load your G-code into the CNC machine.
Check the program for mistakes.
Run a dry test (no cutting) to see if it works.
Watch the machine closely during the test.
Check coolant levels and safety guards.
Plan the tool’s path for the job.
If you do not set up the workpiece right, your parts may not fit or work. Good alignment and tight clamping are important. For thin or small parts, you might use magnets or special holders to keep them still.
Once setup is done, you start the machining operation. The CNC machine follows the G-code to shape the workpiece. The machine cuts, drills, or mills, depending on your design.
You hold the raw material in a fixture or vise.
You make sure the setup is strong enough for cutting.
You line up the workpiece with the machine’s coordinates.
The machine works fast and very accurately. You can make one part or many that are the same. While machining, you check for tool wear and change tools if needed. You also keep the machine clean and oiled to keep it working well.
A good workflow helps you avoid mistakes and waste less material. Quality control teams use special tools to check if the finished part matches your design.
After machining, you often need to finish and check the part. Finishing makes the surface smoother or adds coatings. Common finishing methods include:
Finishing Technique | Description | Surface Roughness (Ra) |
|---|---|---|
Fine Finishing Cuts | Makes the surface smoother | 0.4–0.2 µm |
Grinding or Lapping | Gives a mirror-like surface | 0.01 µm |
Bead Blasting | Makes a matte or satin finish, removes tool marks | N/A |
Anodizing | Adds a hard coating to aluminum, stops corrosion | N/A |
You check the workpiece to make sure it is the right size and quality. Inspection steps include:
Measuring the part during and after machining.
Changing the machine if you find mistakes.
Doing a last check to accept or reject the part.
You may use hardness testers, spectrometers, or other tools to check the material and finish. Keeping good records and following rules, like ISO 9001, helps you keep high quality.
Modern CNC machining uses sensors and real-time checks to catch mistakes early. Automation and smart software help you waste less and work better. These steps make sure your finished part is accurate, strong, and ready for use in cars, planes, robots, and more.
There are many materials you can pick for cnc machining. The material you choose depends on how you will use the part. It also depends on how strong it needs to be and how much it costs. Some materials are better for certain shapes or looks. Here are some materials you might see in factories:
Aluminum 6061
Aluminum 7075
Stainless Steel 304
Stainless Steel 316
Brass C360
Steel
Titanium
ABS
Acetal
PEEK
Brass
Copper
Nylon
Polycarbonate
PVC
High-density polyethylene
Low-density polyethylene
Each material has its own special features. For example, aluminum 6061 is easy to cut and not expensive. Aluminum 7075 is stronger and can handle heat better. Stainless steel does not rust and lasts a long time. Plastics like ABS and acetal are light but still strong. PEEK is good if you need something that does not wear out fast.
Here is a table to help you compare some popular materials:
Material | Key Properties |
|---|---|
ABS | High impact strength, low heat conductivity, low friction |
Acetal | High mechanical strength, good stability, low moisture absorption |
PEEK | High abrasion resistance, low moisture absorption, low friction |
Aluminum 6061 | Excellent machinability, low cost, versatile |
Aluminum 7075 | High strength, hardness, low weight, heat tolerance |
Tip: Always pick the material that fits your part’s job. This helps you get good results in cnc milling and cnc turning.
There are many kinds of machines used in factories today. Each machine does a different job. Some machines cut, some drill, and some shape parts in their own way. Here is a table that shows the main types of cnc machines and what they do:
CNC Machine Type | Definition |
|---|---|
CNC Milling Machine | Uses rotating cutting tools to remove material from a stationary workpiece. |
CNC Lathe Machine | Rotates the workpiece while a stationary tool shapes it. |
CNC Router | Cuts and shapes wood, plastic, and soft metals. |
CNC Drilling Machine | Creates precise holes with rotating drill bits. |
CNC Plasma Cutting Machine | Cuts metals with a high-velocity plasma arc. |
CNC Laser Cutting Machine | Uses a focused laser beam for high-precision cutting or engraving. |
CNC EDM Machine | Removes material with controlled electrical sparks. |
CNC Grinding Machine | Achieves fine surface finishes with a rotating grinding wheel. |

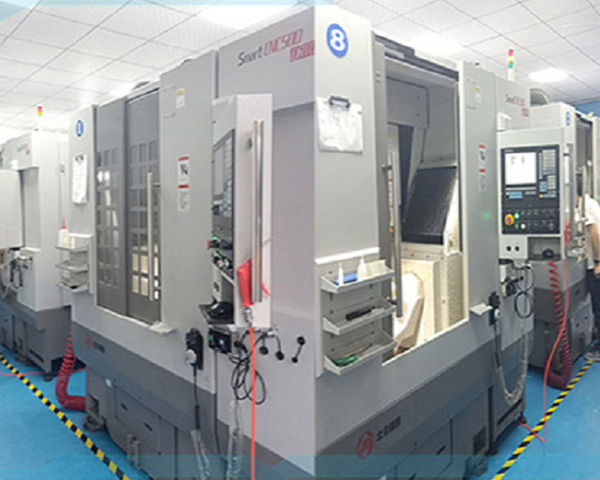

5-Axis CNC Machine | Moves along five axes for complex shapes in one setup. |
Swiss-Type CNC Lathe | Machines small, long parts with high precision. |
Multi-Spindle CNC Machine | Machines several parts at once for high-volume production. |
CNC Water Jet Cutting Machine | Cuts materials with high-pressure water, sometimes with abrasives. |
Cnc milling and cnc turning are used the most. Cnc milling makes flat and tricky shapes. Cnc turning makes round or tube-shaped parts. You can use these machines to make things for cars, robots, and even planes.
Best Prototypes has many ways to make parts. You can use their cnc machining, 3D printing, sheet metal work, and casting. They know how to do 5-axis milling and work with cars, robots, impellers, chips, planes, and energy machines. This means you can count on them for many projects and materials.
Note: Picking the right machine can make your work faster and your parts better. Machines with tool changers and feedback systems help you save time and waste less.
If you want to learn more, try online courses, books, or hands-on training at a technical school. Many people think cnc machining is too hard or needs constant watching, but modern machines and software make it easier than ever. You do not need a technical background to start learning and growing in this field.
CNC stands for Computer Numerical Control. You use a computer to control machines that cut or shape materials. This helps you make parts that are very accurate.
Yes, you can use CNC machining for metals like aluminum or steel and plastics like ABS or nylon. You pick the material based on what your part needs.
CNC machines follow computer instructions. You can design any shape in CAD software. The machine cuts the material exactly as you planned, even if the shape is tricky.
No, you can use CNC machining in small workshops or big factories. Many schools and hobbyists use desktop CNC machines for projects and learning.
You can make car parts, robot arms, airplane pieces, and even custom tools. CNC machining helps you create strong and precise items for many industries.
