Professional 5-Axis CNC Machining Services

Best Prototypes provides precision 5-axis CNC machining services for complex prototypes, low-volume parts, and production components that require multi-angle machining, tight dimensional control, and high-quality surface finishes.

From one-off prototypes to small-batch and production projects, our engineering team supports customers in aerospace, automotive, medical, semiconductor, electronics, and industrial equipment applications.

Send us your CAD file and drawing to receive a manufacturability review and quotation.
imgi_10_6

+

Countries Served

㎡

Manufacturing Space

Manufacturing Facilities

+

Product Developers Served

Why Choose 5-Axis CNC Machining?

Traditional 3-axis machining may require multiple repositioning operations to reach different surfaces of a complex part.
5-axis machining allows the tool and workpiece to move across five axes, enabling multiple faces and angled features to be machined in fewer setups.
Reducing repositioning can help improve feature-to-feature consistency and simplify the machining of complex components.

Better Access to Difficult Geometries

5-axis machining is well suited for parts containing:
Compound angles
Deep pockets
Curved surfaces
Complex contours
Angled holes
Multi-face features
Difficult-to-reach machining areas
The additional rotational movement gives the cutting tool better access to features that may be difficult or inefficient to machine with conventional 3-axis equipment.

Improved Surface Finish on Complex Surfaces

By adjusting the cutting angle continuously, 5-axis machining can maintain more favorable tool contact with complex surfaces.
This can reduce the need for long cutting tools and help improve surface consistency on free-form and contoured parts.

Reduce Secondary Setup Requirements

For suitable components, multiple surfaces can be machined within one machining cycle.
Fewer setups may reduce fixture changes, manual repositioning, and cumulative setup error while shortening the overall manufacturing workflow.
imgi_5_135

Our 5-Axis CNC Machining Capabilities

Best Prototypes supports simultaneous 5-axis CNC milling for high-precision and complex metal and plastic components.

Typical published capabilities include:

Capability

Specification

Machining Process

Simultaneous 5-Axis CNC Milling

Maximum Part Size

Up to approx. 1000 × 800 × 600 mm

Minimum Feature Size

Approx. φ0.50 mm

Maximum Spindle Speed

Up to 40,000 RPM

Materials

Aluminum, Copper, Brass, Plastics and project-dependent materials

Production Volume

Prototype to low-volume and production runs

Supporting Processes

3-Axis, 4-Axis, 3+2 Axis, CNC Turning, Grinding, Wire EDM, Sinker EDM

Actual machinable size, tolerance, feature accessibility, and surface requirements depend on part geometry, material, workholding, and drawing specifications.

Materials for 5-Axis CNC Machining

Material selection depends on mechanical performance, weight, corrosion resistance, thermal requirements, surface finish, and project cost.

Aluminum

Widely used for lightweight, corrosion-resistant, and highly machinable components.

Suitable for aerospace, electronics, automation, automotive, and prototype applications.

Brass & Copper

Suitable for electrical, thermal-management, decorative, and precision mechanical components.

Engineering Plastics

Selected plastics can be machined for functional prototypes, fixtures, housings, insulation components, and low-volume end-use parts.

Other Metals

Additional materials may be evaluated according to your drawing and project requirements.
Send the required material grade together with your CAD file for confirmation.
company

From Prototype to Production

Our 5-axis CNC machining service supports different stages of product development.

Prototype Machining

Produce functional or appearance prototypes to verify geometry, assembly, fit, and design before committing to larger production quantities.

Low-Volume Production

Suitable for bridge production, pilot runs, engineering builds, replacement parts, and specialized products that do not justify hard tooling.

Production Machining

Repeatable CNC machining can support ongoing production when part geometry, tolerance requirements, and volumes are suitable for CNC manufacturing.


Best Prototypes' broader CNC capability supports projects from single parts to quantities above 1,000 pieces depending on geometry and project requirements.

Parts Best Suited for 5-Axis CNC Machining

Aerospace

Aerospace

Precision prototype and production components for aerospace product development and complex engineering applications.


Projects may require complex geometries, tight dimensional requirements and advanced CNC or 5-axis machining.

Automotive

Automotive

Rapid prototyping and manufacturing solutions supporting automotive development, testing and production programs.


Applications can include mechanical components, structural parts and product development prototypes.

Automation

Automation

Custom components for automation equipment, industrial machinery, robotics and mechanical assemblies.


Precision machining and fabrication support development from engineering prototypes through production.

Medical

Medical

Manufacturing support for medical product development and precision components requiring controlled dimensions and reliable manufacturing quality.

Energy

Energy

Custom manufactured components for energy equipment and industrial applications where material, dimensional and surface requirements are important.

Semiconductor

Semiconductor

Precision components for semiconductor equipment and engineering systems requiring demanding dimensional and surface requirements.

Why Work With Best Prototypes?

Application4

Advanced 5-Axis Machining Capability

Simultaneous 5-axis machining supports demanding multi-angle and complex geometry projects.

Up to 40,000 RPM Spindle Capability

High-speed machining capability supports precision milling applications and complex surface machining.

Multiple CNC Processes Under One Supplier

In addition to 5-axis machining, Best Prototypes supports 3-axis, 4-axis, 3+2-axis milling, CNC turning, grinding, wire EDM, and sinker EDM.

Prototype to Production Support

Projects can move from early-stage prototypes through low-volume manufacturing and suitable production runs with one manufacturing partner.

Post-Processing Support

Machined parts can be combined with suitable surface treatments and secondary processes to reduce the need for multiple suppliers.

CNC-Machining

CNC Machining

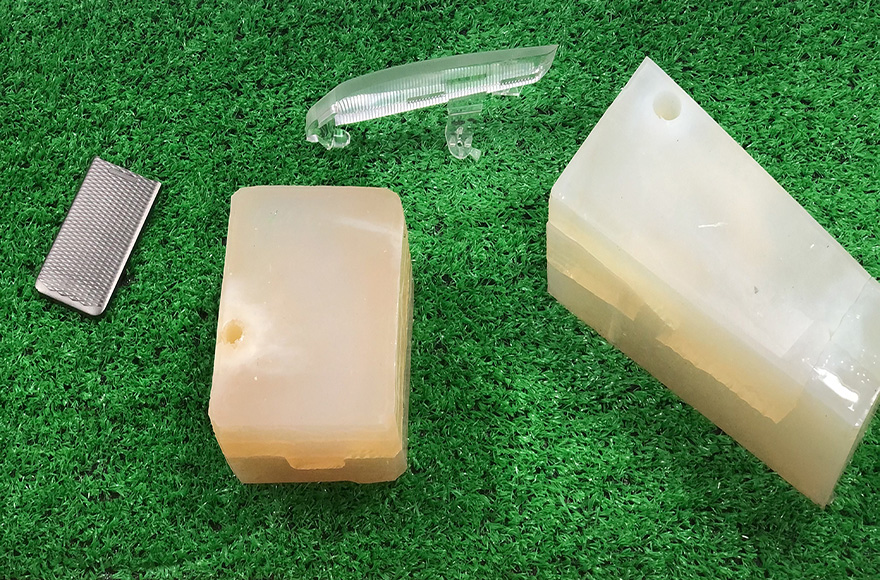

PMMA1

Vacuum Casting

3D-Printing

3D Printing

Quality Control for 5-Axis Machined Parts

DFM Review

Before machining, engineering requirements can be reviewed to identify issues related to geometry, tolerance, tool access, material selection, and machining strategy.

Incoming Material Inspection

Materials can be checked against confirmed project requirements before production begins.

In-Process Inspection

Key dimensions and machining characteristics can be monitored during manufacturing according to project requirements.

Final Inspection

Completed parts are inspected before shipment to verify important dimensional and visual requirements.

Everything You Need to Know Before Ordering

Q: What is the difference between 3-axis and 5-axis CNC machining?
3-axis machining moves the cutting tool along the X, Y, and Z axes.
5-axis machining adds two rotational axes, allowing the tool to approach the part from multiple directions and machine more complex features with fewer setups.
Q: When should I use 5-axis machining?
5-axis machining is particularly useful when a part contains complex contours, compound angles, multiple machined faces, deep cavities, angled holes, or geometries that would otherwise require repeated repositioning.
Q: Can you machine prototypes with 5-axis CNC?
Yes.
5-axis machining can be used for one-off prototypes, engineering validation parts, small batches, and suitable production projects.
Q: What is the maximum 5-axis part size?
The published capability for selected aluminum, copper, brass, and plastic 5-axis machining projects is approximately 1000 × 800 × 600 mm.
Actual capacity should be confirmed according to part geometry and workholding requirements.
Q: Can you provide surface finishing after CNC machining?
Yes.
Best Prototypes supports CNC machining together with project-dependent post-processing and surface finishing options.
Q: What files should I send for quotation?
A 3D CAD file is strongly recommended.
For parts with critical tolerances, GD&T, threads, and special surface requirements, a 2D engineering drawing should also be included.
jx8

Start Your 5-Axis CNC Machining Project

Have a complex part that requires multi-angle machining, tight dimensional control, or fewer setups?

Send us your CAD file, engineering drawing, material, quantity, tolerance, and surface-finish requirements.

Our engineering team can review the project and recommend a suitable machining approach.
