5-axis machining helps you make complex parts. It moves a tool or workpiece in five ways. You get better accuracy and more options than with regular CNC machines. This technology is important for shaping detailed surfaces or angles. Many industries use it. Aeronautics uses it for turbine blades. Medicine uses it for implants. Energy uses it for strong fittings.
5-axis machining helps you make complex parts very accurately. It moves in five directions at the same time. This technology cuts down setup time a lot. You can finish parts faster and make fewer mistakes. You can use many materials like metals and plastics. This makes it useful for many types of jobs. 5-axis CNC machines are great for detailed designs. They let you make small features and shapes. Industries such as aerospace, medical, and automotive use 5-axis machining. They use it because it is precise and works quickly.

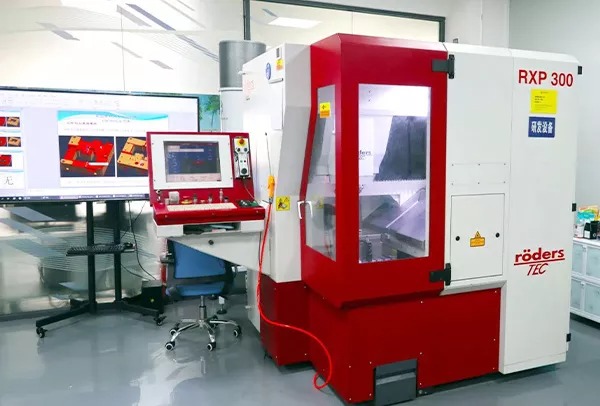

5-axis machining is a strong way to shape parts with lots of detail. A 5-axis cnc machine can move the tool or the part in five directions at once. It moves straight in three ways: left and right (X), forward and back (Y), and up and down (Z). It also spins in two ways. The A-axis spins around the X-axis. The B-axis spins around the Y-axis. This lets you cut hard angles and shapes in one step.
A 5-axis cnc machine gives you more control than older cnc machines. You can reach the part from almost any side. This means you can make parts with curves, holes, and tricky shapes that are hard for other machines. You do not have to stop and move the part many times. This saves time and keeps your part correct.
A 5-axis cnc machine can work with many materials. You can use it with aluminum, copper, brass, and plastics. It also works with titanium, Inconel, ceramics, graphite, and composite materials like CFRP and GFRP. These machines can make very small features, as tiny as 0.50 mm. They are very exact, often up to ± 0.005 inches (0.13 mm). This helps you make parts that fit together just right.
Process | Tolerance |
|---|---|
5-axis CNC Milling | ± 0.005 inches (0.13 mm) |
You can use a 5-axis cnc machine to make parts for planes, cars, medical tools, and things people use every day. Climate tech and energy companies also use these machines. Because you can cut from any side, you can make undercuts and special shapes. You can make turbine blades, implants, and strong fittings with great accuracy.
Here is how a 5-axis cnc machine is different from other cnc machines:
3-axis machines move in three straight lines (X, Y, Z). They are best for flat or simple shapes.
4-axis machines add one spin, usually around the X-axis. You can work around the part without moving it.
5-axis machines add two spins (A and B axes). You can make hard 3D shapes and need fewer setups.
Tip: A 5-axis cnc machine helps you work faster. You spend less time setting up and more time making parts.
A 5-axis cnc machine gives you lots of choices. You can design and make parts with tiny details. You do not have to worry about moving the part and making mistakes. New software makes it easy to program these machines. You can trust them to make parts that are just right.
A multiaxis cnc machine, like a 5-axis cnc machine, lets you make designs that are not possible with fewer axes. You get more ways to shape, cut, and finish parts. You can meet tough quality rules and deliver parts on time.
When you use a 5-axis cnc machine, you control five different directions. You move the tool or the part in three straight lines and two spins. The straight lines are called the X, Y, and Z axes. These let you move left and right, forward and back, and up and down. The spins are called the A and B axes. The A axis spins around the X-axis, and the B axis spins around the Y-axis. Some machines also have a C axis, which spins around the Z-axis.
Here is a simple table to help you see how each axis works:
Axis | Function |
|---|---|
X | Left and right movement |
Y | Forward and back movement |
Z | Up and down movement |
A | Rotation around the X-axis |
B | Rotation around the Y-axis |
C | Rotation around the Z-axis |
The A and B rotary axes give your 5-axis cnc machine the power to reach many angles. You can make complex shapes and reach hard spots on your part. You do not need to stop and move the part by hand. This helps you keep your work accurate and repeatable.
A 5-axis cnc machine can move all five axes at the same time. This is called simultaneous movement. You can cut curves, slopes, and tricky shapes in one setup. The machine uses advanced software and a strong controller. The controller reads your program and tells each axis what to do. This keeps every movement smooth and exact.
When you use a 5-axis cnc machine, you get:
Control over the tool’s path and angle.
The ability to make complex parts with tight tolerances.
High precision and a smooth surface finish.
You can make parts with a mirror-like finish because the machine keeps the tool at the best angle. The machine can reach a maximum rotation speed of 40,000 meters per second. This speed helps you cut quickly and keep the surface clean. The multiaxis design lets you finish parts faster and with fewer errors.
Tip: Always check your machine before you start. Wear safety gear and keep your work area clean. Good habits help you stay safe and get the best results from your cnc machine.
The software in your 5-axis cnc machine helps you avoid mistakes. It plans the tool path, checks for crashes, and keeps all axes working together. This makes your machining process more efficient and accurate. You can trust your machine to deliver high precision every time.
A 5-axis cnc machine helps you work faster. You can cut five sides of a part in one go. You do not have to stop and move the part a lot. This saves time and lowers mistakes. Most people see setup times drop a lot. It can go from 30-60 minutes to just 15-20 minutes. You also spend less on labor because the machine does more work.
Here are some main benefits of using a 5-axis cnc machine:
You can make tricky shapes up to 60% faster.
You get more good parts the first time, up to 95%.
You spend up to 35% less on fixing quality problems.
You get smoother surfaces and fewer mistakes.
Setup Type | Traditional CNC | 5-Axis CNC |
|---|---|---|
Average Setup Time | 30-60 minutes | 15-20 minutes |
A 5-axis cnc machine helps you keep parts very exact. You can reach tolerances as tight as ±0.0001". This is important for hard parts in aerospace and cars. You also get the same good results every time you make a part.
Note: You can make hard parts with fewer setups. This saves time and helps you get better results.
Many industries use a 5-axis cnc machine to make advanced parts. You see these machines in aerospace, medical, military, energy, food, and drug making. Each field needs high accuracy and the ability to make hard shapes.
Industry | Notable Applications |
|---|---|
Aerospace | Smooth shapes, curved edges, and detailed cuts for plane parts. |
Medical | Small, detailed medical tools and implants that must be perfect. |
Military | Exact parts for gear, like submarine parts and smart weapons. |
Energy Equipment | Detailed parts for energy systems that last longer. |
Food Processing | Machines for making food products. |
Pharmaceuticals | Tools and machines for making medicine. |
A 5-axis cnc machine lets you work with many materials and shapes. You can trust it to make good parts every time. Project managers use these machines to save money and finish jobs on time. You also meet strict rules because the machine is so exact.
Aspect | Impact on Project Management and Quality Assurance |
|---|---|
Precision | Makes parts more accurate |
Setup Times | Cuts down on time to get ready |
Complex Geometries | Lets you make hard shapes in one step |
Cost Savings | Helps you spend less to make parts |
Quality Outputs | Makes the final product better |
A 5-axis cnc machine helps you make complex parts with smooth finishes. This technology helps you keep up in today’s fast-moving world.
You can find many types of cnc machines in manufacturing. Each type gives you different levels of control and part complexity. A 3-axis cnc machine moves in three directions. You use it for simple shapes and flat surfaces. When you need to make parts with more detail, you use a 4-axis cnc machine. This machine adds one rotation, so you can work around the part without moving it by hand.
A 5-axis cnc machine takes things further. You get two rotations and three straight movements. This lets you work on many faces of a part at the same time. You can make complex shapes in one setup. You do not need to stop and reposition the part. This saves time and helps you keep your parts accurate.
You hear the term multiaxis when people talk about cnc machines. Multiaxis means the machine can move in more than three directions. Multiaxis milling machine configurations include 3-axis, 4-axis, and 5-axis setups. A 5-axis cnc machine is a type of multiaxis system. It gives you more control and flexibility.
With a 5-axis cnc machine, you can:
Make complex shapes in one setup.
Work on multiple faces at the same time.
Reduce manual setups and rework.
Improve efficiency and speed.
Enhance precision and consistency.
You get tight tolerances and smooth surfaces. This is important for parts like turbine blades and medical implants. The machine keeps the tool moving in the best way, so you get a better finish. You do not need to do extra work after machining.
A 5-axis cnc machine uses computer numerical control to guide every movement. You need special training to run this machine. Training programs last from six to twelve months. You learn about software, machine kinematics, and how to program complex parts. Skilled operators help you get the best results.
Note: Multiaxis cnc machines help you make high-value parts with great precision. You can trust them to deliver quality and speed.
You see that 5-axis cnc machines stand out for their precision and flexibility. You can make parts that meet strict standards. You also finish jobs faster and with fewer mistakes.
Now you know that 5-axis machining helps you make complex parts faster. You can control the machine better and finish jobs quickly. This technology lets you work on five sides of a part in one step. This makes your parts more accurate and saves time because you do not need to stop and move the part a lot.
Here are the main benefits:
Advantage | Description |
|---|---|
Increased Accuracy | Working on five sides at once makes parts more exact. |
Faster Processes | Fewer setups help you finish parts faster. |
Ideal for Intricate Parts | Great for parts with tricky shapes and small details. |
Common Usage | Many companies use 5-axis machining for advanced projects. |
You get smoother surfaces and can make more parts in less time.
Smart software and automation make 5-axis machining even better.
People in aerospace, medical, and car industries use this technology a lot.
If you want to make important parts with fewer mistakes, 5-axis CNC machining is a good choice.
You can use aluminum, copper, brass, and plastics. Many shops also use titanium, Inconel, ceramics, and composites. These machines work with both metals and plastics. They can cut with high accuracy.
You get very close tolerances. Most machines can hold tolerances up to ±0.005 inches (0.13 mm). This means your parts will fit together just right.
You can make hard shapes in one setup. You save time and make fewer mistakes. 5-axis machines reach more angles and make detailed parts. 3-axis machines cannot do this.
Aerospace, automotive, medical, and energy companies use 5-axis machining. You also see it in prototyping and electronics. These fields need high accuracy and complex parts.
Yes! You can make features as small as 0.50 mm. This lets you design tiny holes, slots, or details. Other machines cannot make these small features.
