What does CNC precision machining mean in modern manufacturing? It combines computer-controlled technology with strict accuracy requirements to produce reliable, complex parts. Every detail matters, from material selection to final inspection. Understanding its processes, equipment, and accuracy factors helps manufacturers achieve consistent quality and efficient production.
The precision CNC machining process begins with detailed design and CAD modeling. Engineers use software like SolidWorks or AutoCAD to create 3D digital models of parts.
A complete CAD model defines several essential elements:
Dimensions: Specify the exact size and geometry of the finished part.
Tolerances: Establish acceptable dimensional variations.
Critical Features: Identify details that must meet specific design requirements.
Manufacturability: Consider whether the part can be machined accurately and efficiently.
For example, designers may avoid sharp internal corners because they are difficult to machine accurately.
The CAD model serves as the blueprint for the entire manufacturing process, making design accuracy essential.
Once the CAD model is finalized, CAM software converts the design into machining instructions. This process typically involves several steps:
Import the CAD Model: Transfer the completed design into CAM software.
Generate Toolpaths: Define cutting movements, spindle speeds, feed rates, and cutting depths.
Create CNC Code: Generate G-code instructions that control machine operations.
Simulate Machining: Check for potential collisions and programming errors before production.
Optimize Parameters: Refine toolpaths and cutting conditions to reduce tool wear and improve accuracy.
CAM programming connects digital design with physical manufacturing, helping CNC machines follow the required machining sequence.
Proper machine setup is essential for achieving tight tolerances and consistent surface finishes.
Before production, operators install suitable cutting tools, such as end mills, drills, or lathe tools. Tool selection depends on the machining operation and required precision.
The workpiece must also be secured using vises, chucks, or custom fixtures. Stable workholding prevents unwanted movement, vibration, and distortion during cutting.
Some CNC machines feature automatic tool changers, allowing efficient tool switching during multi-step operations.
During machining, CNC machines follow programmed instructions to remove material from the workpiece. Cutting conditions must be carefully controlled to maintain accuracy.
Machining Factor | Role in Precision CNC Machining |
|---|---|
Spindle Speed | Controls cutting tool rotation during machining |
Feed Rate | Determines how quickly the tool moves through the material |
Depth of Cut | Controls the amount of material removed during each pass |
Finishing Passes | Use lighter cuts and slower feeds to improve accuracy and surface quality |
In-Process Probing | Measures critical features and supports tool offset adjustments |
Optimizing these parameters helps reduce tool deflection, heat generation, and potential part distortion.
After machining, parts may require additional finishing to meet dimensional, functional, or appearance requirements.
Common post-processing methods include:
Grinding: Improves dimensional accuracy and surface smoothness, particularly on hardened materials.
Polishing: Enhances appearance and reduces friction on moving surfaces.
Deburring: Removes sharp edges and remaining burrs that could affect assembly.
Coating: Provides additional surface finishing according to part requirements.
These processes help ensure finished components meet their intended quality standards.
Precision CNC machining uses different types of equipment to manufacture parts with varying shapes, dimensions, and accuracy requirements. Each machine type serves specific manufacturing applications.
CNC milling machines use rotating cutting tools to remove material from workpieces. Multi-axis movement allows them to create complex geometries and detailed features.
Typical milling operations include:
Flat surface machining
Slot and pocket cutting
Complex 3D contour machining
Precision component manufacturing
Some CNC milling applications can achieve tolerances as tight as ±0.0025 mm under suitable conditions.
Vertical and horizontal milling configurations offer flexibility for aerospace, medical, and automotive components.
CNC turning machines rotate the workpiece while a cutting tool removes material. This process is particularly suitable for cylindrical and symmetrical components.
Common examples include shafts, rods, bushings, engine components, hydraulic fittings, and threaded parts.
Turning operations provide accurate control over diameters, lengths, cutting depths, and surface finishes. Their repeatability makes them valuable for producing components with consistent dimensions.
CNC drilling machines create accurate holes by feeding rotating drill bits into workpieces.
Two common drilling techniques improve machining performance:
Drilling Technique | Function | Main Benefit |
|---|---|---|
Spot Drilling | Creates a guide hole before the main drilling operation | Helps prevent drill wandering |
Peck Drilling | Periodically retracts the drill during machining | Improves chip removal and reduces heat buildup |
These techniques are especially useful when drilling deep holes or machining difficult materials.
Precision drilling supports applications such as assembly holes, fuel injection ports, and fastener locations.
Electrical Discharge Machining (EDM) removes material through controlled electrical sparks between an electrode and a workpiece submerged in dielectric fluid.
Unlike conventional cutting, EDM does not rely on direct mechanical cutting forces.
Its main capabilities include:
Machining hard metals and intricate geometries
Producing fine details and sharp internal corners
Creating deep cavities in molds and dies
Reducing mechanical stress during material removal
EDM can achieve micrometer-level tolerances under suitable machining conditions. It is commonly used for molds, dies, and complex aerospace components.
CNC plasma cutting uses high-temperature ionized gas to melt and remove electrically conductive materials.
It is commonly applied to steel, aluminum, and other conductive metals. The process is suitable for cutting thick plates, structural components, and complex sheet metal profiles.
CNC plasma cutters provide fast cutting speeds and can achieve specified cutting tolerances depending on equipment and operating conditions.
They are often used in sheet metal fabrication, structural manufacturing, and prototype production.
Precision grinding machines use abrasive wheels to remove small amounts of material and refine component dimensions.
Grinding is particularly useful after milling or turning when tighter tolerances or smoother surfaces are required.
Grinding Capability | Typical Application |
|---|---|
Dimensional Correction | Improving the size and shape of machined components |
Surface Finishing | Producing smooth surfaces with roughness values as low as Ra 0.2 µm |
Hardened Material Processing | Finishing components that are difficult to machine conventionally |
Precision Surface Preparation | Manufacturing bearing surfaces and sealing faces |
Grinding complements other CNC processes by improving the final quality of precision components.
Material selection plays an important role in machining accuracy, component performance, and manufacturing efficiency.
Metals and plastics are widely used in precision CNC machining, but their mechanical and thermal properties create different processing requirements.
Different metals offer varying combinations of strength, machinability, corrosion resistance, and thermal performance.
Material | Key Properties | Machining Considerations |
|---|---|---|
Aluminum Alloys (6061, 7075) | Lightweight, good machinability, suitable strength | Suitable for parts requiring good surface finishes |
Stainless Steels (304, 316, 17-4 PH) | Corrosion resistance and strength | Require careful tooling to manage work hardening |
Tool Steels (A2, D2) | High hardness and wear resistance | Slower machining may be needed to protect cutting tools |
Titanium (Ti-6Al-4V) | High strength and biocompatibility | Heat management is important due to low thermal conductivity |
Copper, Brass, and Bronze | Good electrical properties and suitability for fittings | Sharp tools and appropriate feed rates help manage cutting behavior |
Inconel and Monel | High performance in demanding environments | Often require specialized tooling and reduced cutting speeds |
Selecting suitable metals and cutting parameters helps manufacturers maintain precision while controlling tool wear.
Plastics provide lightweight and corrosion-resistant alternatives to metals. However, their machining characteristics require careful consideration.
Common challenges include:
Thermal Sensitivity: Excessive cutting heat can cause melting or deformation. Sharp tools, appropriate cutting speeds, and suitable cooling methods help control temperatures.
Dimensional Stability: Some plastics absorb moisture, leading to dimensional changes. Material pre-conditioning and humidity control can improve consistency.
Chip Removal: Long, stringy chips may interfere with machining. Specialized tooling and chip breakers help improve chip evacuation.
Common plastics used in precision machining include nylon, ABS, polycarbonate (PC), acetal (POM), PTFE, PEEK, and acrylic (PMMA).
Choosing the right material requires balancing mechanical performance, environmental conditions, manufacturing requirements, and cost.
Key selection factors include:
Mechanical Properties: Strength, hardness, and flexibility needed for the component.
Thermal Properties: Thermal expansion and conductivity affecting dimensional stability.
Chemical Resistance: Ability to withstand exposure to fluids or operating environments.
Cost and Availability: Material expenses and supply considerations.
Machinability: Cutting performance, tool wear, and achievable surface finish.
Material requirements also vary by industry.
For example, aerospace components often use titanium or aluminum to balance strength and weight. Medical implants may use titanium or biocompatible plastics such as PEEK, while electrical components frequently use copper or brass for conductivity.
Material behavior directly affects the ability to maintain tight tolerances during machining.
Material Property | Impact on Machining Accuracy |
|---|---|
Hardness | Higher hardness increases cutting forces and tool wear, often requiring tougher tooling |
Thermal Expansion | Temperature changes may alter component dimensions during machining |
Residual Stress | Internal material stresses can cause warping after material removal |
Elasticity and Springback | Flexible or thin components may deform and return toward their original shape |
Managing these properties through suitable material selection, tooling, temperature control, and workholding helps manufacturers achieve consistent dimensional accuracy.
Precision CNC machining is widely used in industries where dimensional accuracy, surface quality, and consistency directly affect product performance.
Automotive manufacturers use precision CNC machining to produce engine components, transmission parts, suspension mounts, and custom brackets.
Fuel injection systems, for example, require accurately machined holes and channels to control fuel flow. Even small dimensional errors can affect vehicle performance, durability, and component fit.
Aerospace components must maintain reliable performance under demanding operating conditions. Precision CNC machining supports the production of:
Turbine Blades: Complex shapes requiring precise machining.
Landing Gear Components: Parts with strict dimensional requirements.
Avionics Housings: Accurate enclosures for aircraft electronics.
Structural Brackets: Components requiring consistent dimensions and reliable fit.
Some aerospace components require tolerances within ±0.01 mm. Materials such as titanium and Inconel also demand careful machining to meet performance requirements.
Precision CNC machining supports the production of orthopedic implants, dental prosthetics, cardiovascular stents, surgical instruments, and diagnostic components.
Dimensional accuracy and smooth surface finishes are particularly important for medical parts. Materials such as titanium and PEEK are commonly used in suitable medical applications.
Accurate machining helps components meet their intended fit and functional requirements.
Electronics manufacturers rely on precision CNC machining for small components with detailed features.
Common applications include heat sinks, connector housings, sensor mounts, and semiconductor wafer-handling parts.
Connectors require accurate alignment to maintain reliable electrical connections, while heat sinks need precisely machined contact surfaces for efficient heat transfer.
Industrial equipment and hydraulic systems depend on accurately machined valves, actuators, pumps, and measuring instruments.
For example, hydraulic valve spools require close dimensional control to fit correctly inside their bores. Proper machining helps prevent fluid leakage, maintain pressure control, and ensure responsive operation.
Precision CNC machining offers several advantages for manufacturers producing components that require tight tolerances, complex geometries, and consistent quality.
CNC machines follow programmed instructions to produce parts with consistent dimensions across repeated production runs.
This repeatability reduces variations and helps components meet their intended fit and function. Some aerospace applications, for example, require tolerances within ±0.01 mm.
Consistent machining also reduces the need for repeated adjustments between production batches.
Precision CNC machining improves production efficiency through controlled toolpaths and optimized cutting parameters.
Its main benefits include:
Less Material Waste: Accurate cutting reduces unnecessary material removal and defective parts.
Reduced Rework: Consistent machining helps minimize dimensional errors.
Faster Production: Automated operations reduce manual intervention.
Lower Operating Costs: Reduced scrap and improved throughput can decrease overall manufacturing expenses.
These advantages become especially valuable in repeated production.
Multi-axis CNC machines can produce detailed contours, fine holes, and tight radii that are difficult to achieve with manual machining.
This capability supports complex components such as aerospace turbine blades and medical implants.
By controlling tool movement across multiple axes, manufacturers can machine intricate features while maintaining dimensional accuracy.
Precision CNC machining can process various materials, including plastics, aluminum, titanium, and Inconel.
Different materials require suitable cutting tools and machining parameters to maintain accuracy.
Some CNC machines also combine milling, turning, and drilling operations within a single setup. This flexibility helps manufacturers produce different component designs efficiently.
Although precision CNC machining can involve higher initial setup costs, repeated production helps distribute these expenses across more parts.
Several factors contribute to long-term cost efficiency:
Consistent part quality reduces scrap and rework.
Automated operations lower manual labor requirements.
Repeatable machining improves production throughput.
Larger production volumes can reduce the cost per component.
These benefits are particularly relevant to automotive and electronics manufacturing, where large quantities of consistent parts are often required.
Tip: Specify tight tolerances only where necessary for component function. This helps balance machining accuracy, production efficiency, and overall cost.
Achieving consistent machining accuracy requires proper control of equipment, cutting tools, materials, and operating conditions.
Machine rigidity forms the foundation of precision CNC machining.
A stable frame, accurate linear guides, and high-quality spindle bearings help minimize vibration and positioning errors. Precision machines may also provide micron-level repeatability.
Temperature control is equally important. Machine components expand as they warm up, potentially causing dimensional changes. Maintaining stable operating conditions helps reduce these effects.
Cutting tool condition directly affects dimensional accuracy and surface quality.
Several factors require attention:
Tool Selection: Carbide or coated tools can provide improved wear resistance.
Tool Runout: Excessive eccentricity may cause dimensional errors and poor surface finishes.
Tool Wear: Worn cutting edges change cutting forces and affect part dimensions.
Toolholding: Properly secured holders and collets help prevent vibration and misalignment.
Regular inspection and timely tool replacement help maintain consistent machining results.
Materials respond differently to cutting forces and temperature changes.
Aluminum, for example, can experience noticeable dimensional changes due to thermal expansion. Residual stresses may also cause warping after material removal.
Thin or flexible components can experience elastic recovery or springback, affecting their final dimensions.
Manufacturers can manage these challenges through stress-relieved materials, balanced cutting strategies, and controlled machining temperatures.
Cutting speed, feed rate, and depth of cut influence both machining efficiency and accuracy.
Cutting Factor | Effect on Machining |
|---|---|
Cutting Speed | Influences cutting temperature and tool performance |
Feed Rate | Affects cutting forces and surface quality |
Depth of Cut | Determines material removal and potential tool deflection |
Finishing Passes | Improve dimensional control through lighter cuts |
In-Process Probing | Supports measurements and tool offset adjustments |
Roughing operations typically prioritize material removal, while finishing passes focus on dimensional accuracy and surface quality.
Balancing these parameters helps minimize thermal distortion and tool deflection.
Workholding systems must secure parts without causing distortion.
Precision fixtures, dowel pins, and hydraulic clamps help maintain consistent positioning between machining cycles. Variations in clamping force can lead to dimensional differences.
Temperature stability also affects repeatability. Some precision manufacturing environments maintain temperatures near 20°C ±1°C to support consistent machining and measurement.
Reliable fixturing and controlled conditions help maintain uniform results across production batches.
Surface finish affects both component appearance and functional performance.
Achieving smooth surfaces requires sharp cutting tools, stable machines, and suitable machining parameters. Some applications also require secondary processes such as grinding or polishing.
However, demanding surface finish requirements can increase production time and cost.
Manufacturers should match surface quality specifications to actual component needs rather than applying unnecessarily strict requirements.
Selecting a suitable precision CNC machining partner requires evaluating technical capabilities, industry experience, quality control, and production flexibility.
A reliable manufacturing partner should have equipment that matches the complexity and precision requirements of your parts.
Important capabilities to assess include:
CNC Equipment: Availability of 3-axis, 4-axis, or 5-axis machining systems.
Specialized Processes: Access to EDM, precision grinding, or plasma cutting equipment.
Programming Software: CAD/CAM tools for machining preparation and simulation.
Equipment Maintenance: Regular calibration and maintenance procedures.
Strong engineering support also helps optimize toolpaths and identify potential manufacturing issues before production.
Industry experience can influence a supplier's ability to handle specific manufacturing requirements.
Aerospace components often require detailed documentation and traceability, while medical parts demand careful material selection and surface finish control.
When evaluating a supplier, review previous projects involving similar materials, tolerances, and production volumes.
Relevant case studies or customer references can provide additional insight into manufacturing capabilities.
Quality control is essential for ensuring precision-machined components meet design specifications.
Reliable suppliers typically use inspection equipment and documented quality procedures.
Key areas to review include:
Inspection Equipment: Coordinate measuring machines (CMM), optical measuring systems, and surface profilometers.
Inspection Documentation: First Article Inspection Reports (FAIRs) and Certificates of Conformance (CoCs).
Quality Certifications: ISO 9001, AS9100 for aerospace, and ISO 13485 for medical device quality management.
These systems support consistent inspection, documentation, and manufacturing quality.
Before selecting a machining partner, confirm that the supplier can process your required materials and consistently achieve the specified tolerances.
Typical considerations include:
Evaluation Area | What to Confirm |
|---|---|

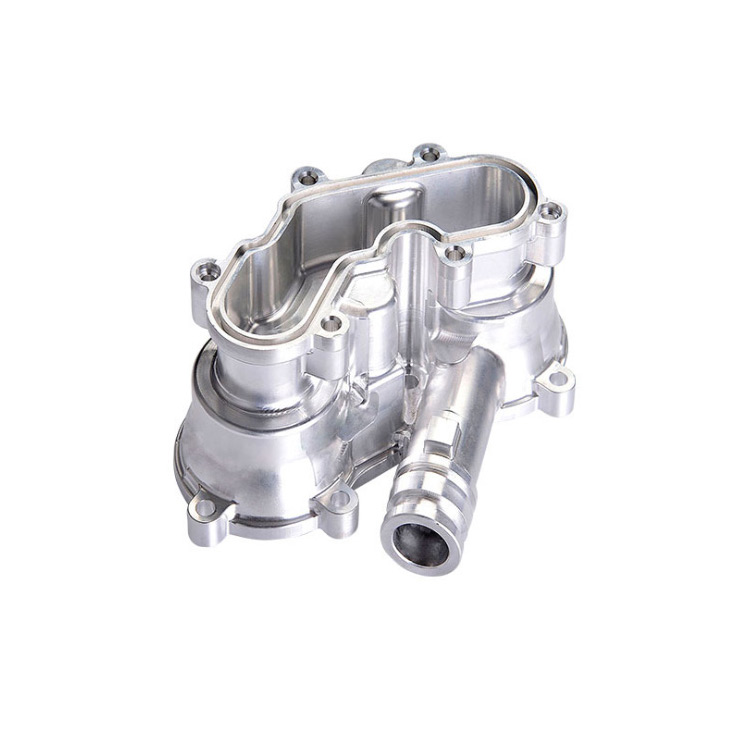

Metal Machining | Capability to process aluminum, stainless steel, and titanium |
Plastic Machining | Experience with materials such as PEEK and Delrin |
Tight Tolerances | Ability to achieve requirements such as ±0.01 mm |
General Precision | Consistent production at tolerances such as ±0.05 mm |
Actual capabilities vary between manufacturers. Discussing material and tolerance requirements early helps prevent production problems and costly design changes.
Clear communication helps maintain project schedules and resolve manufacturing issues efficiently.
A reliable CNC machining partner should provide regular updates on production progress, quality inspections, and potential delays.
Lead times depend on part complexity and order volume. Suppliers should also demonstrate the ability to support both prototype development and larger production runs.
Evaluating communication, delivery reliability, and production scalability helps ensure a more stable long-term manufacturing relationship.
Precision CNC machining transforms digital designs into accurate, high-quality components. It combines CAD/CAM programming, advanced machining processes, and suitable materials to ensure consistent results.
Its benefits include tight tolerances, complex geometries, and reduced material waste. Proper tooling, temperature control, and quality inspections help maintain accuracy across production runs.
Best Prototypes offers precision CNC machining services for custom parts and diverse industry applications. Its solutions support reliable quality, efficient production, and scalable manufacturing needs.
A: Precision CNC machining is a manufacturing process using computer-controlled machines to produce parts with very tight tolerances and high accuracy.
A: It ensures consistent dimensions and surface finishes by following exact programmed instructions and optimizing cutting parameters.
A: It offers greater repeatability, complex geometries, and reduced material waste compared to manual machining.
A: Material type, part complexity, tolerance requirements, and production volume influence the overall price.
A: Check tool wear, machine calibration, fixturing stability, and optimize cutting parameters to maintain precision.
